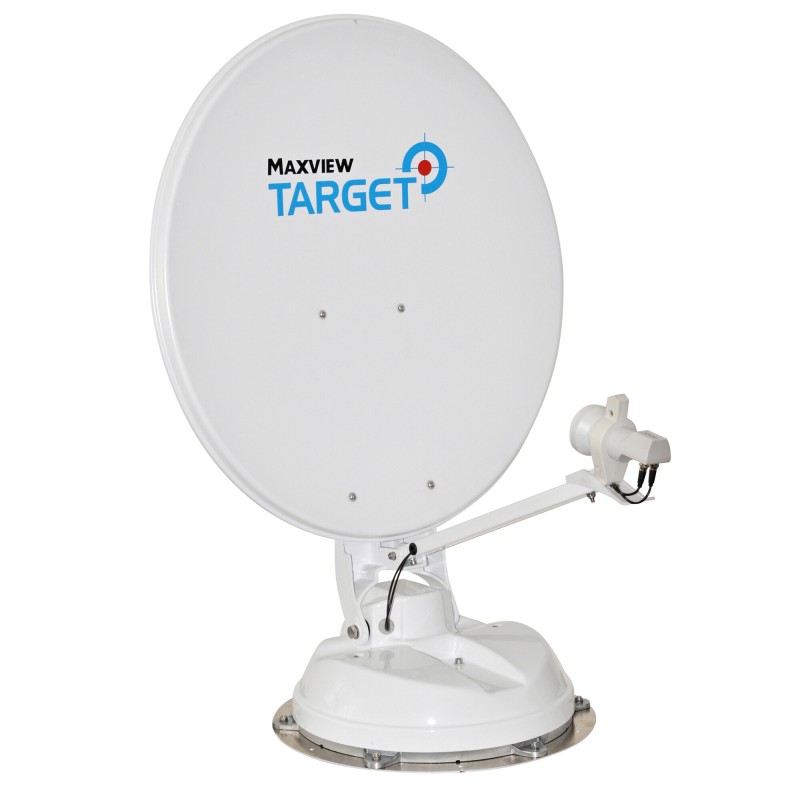

Sat System Target

Aerodynamically designed and fully automatic sat system with precisely shaped 50, 65 or 85 cm powder-coated dishes made of aluminium that guarantee best reception even on the edge of the footprint areas. The receiver-independent Maxview Target needs only one button for operation and finds one of the 5 preprogrammed satellites (Astra 1, Astra 2, Astra 3, Hotbird and Thor) within a very short period of time. Their high-quality motors and gear run submerged in a fully encapsulated oil bath, ensuring the device’s functionality for years.

Features:

• Manually adjustable skew angle
• Robust and anti-corrosive external unit
• Overload protection
• Future-proof design with USB updates for prospective satellites
• 3 year manufacturer warranty
• Made in Europe

Scope of Delivery:

Motor-controlled outdoor unit with satellite mirror, low-noise LNB, pre-assembled cabling (10 m coax cable and 5 m control cable), control box, mounting material.

Technical Data:

• Power supply 10 – 15 V
• Automatic retraction of the antenna when the vehicle is started
• Average searching time 30 – 90 seconds (approx.)
• Power consumption while searching max. 2 Amperes
• Universal LNB with 0.1 – 0.2 dB noise factor
• Can store up to 10 satellites
• Pre-programmed for 5 satellites, other configurations on request
• Mirror size 65/ 85 cm
• Weight antenna unit 10 kg (65 cm) and 11 kg (85 cm)
