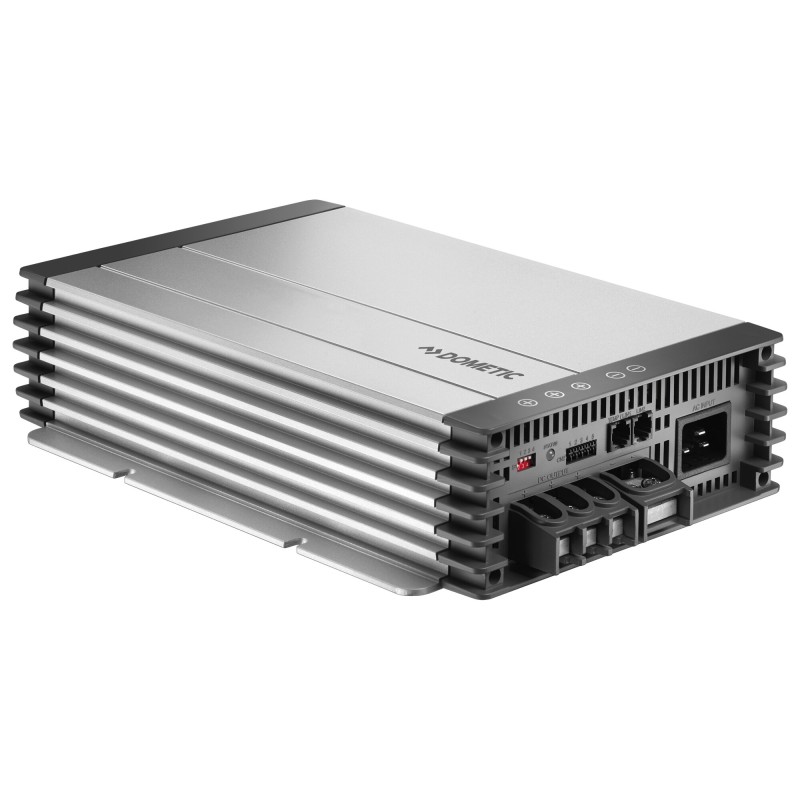

Charger PerfectCharge MCA, 40 A
€940.00
Tax included
323/335
Preorder (Delivery in 10-15 days)
Πληρωμή και σε 5 άτοκες δόσεις
Charging outputs: 3
Recommended battery capacity: 100 – 400 Ah
- Weight
- 3,9 kg
- Dimensions (Width)
- 37,9 cm
- Dimensions (Height)
- 27,1 cm
- Dimensions (Depth)
- 14,8 cm
- Charging Current
- 40 A
- Output Voltage
- 24 V
- Dim. (Height)
- 75
- Dim. (Depth)
- 303
- Dim. (Width)
- 209
- Text 2
- Ladeausgänge: 3Empfohlene Batteriekapazität: 100 – 400 Ah Charging outputs: 3 Recommended battery capacity: 100 – 400 Ah
- Nominal Voltage
- 110 V | 230 V
- Categories
- Chargers
- Gross weight
- 3,9 kg
- Gentle charging of 24 V batteries with optimised 6-stage IUoU charging technology
- Simultaneous charging of two batteries plus a starter battery
- Incl. bus interface as standard for seamless integration into existing bus systems
Technical specifications:
- Input voltage: 90 – 260 V
- Frequency: 50 – 60 Hz
- Final charging voltage: 28.8/29.4 V
- Maintenance charging voltage: 27.6 V
- Uo-phase limitation: at 8 or 16 h
- Energy efficiency: up to 92%
- Operating temperature: -20 to +50 °C
Useful extensions: remote control, battery sensor from Hella, temperature sensor
