iManager 12V/150A με οθόνη αφής

iManager is the innovative management system for all batteries and energy requirements on board, which above all avoids the "permanent parallel connection" of batteries. It manages up to three batteries simultaneously or separately, even with different technologies and amperages, thus improving performance. Thanks to the automatic battery cut-off function, it preserves the service life of the batteries. The touch display shows all available information, both on the state of charge of the batteries and on the use of the batteries.

With a simple touch, the batteries to be activated or deactivated can be selected manually for fully personalized management.

iManager constantly monitors the battery voltages and automatically selects the battery to be used, taking into account the charging and discharging currents, with the aim of keeping all the batteries at the same state of charge and thus optimizing their performance.

Installing two body batteries in complete safety, avoiding the obsolete and inadvisable parallel operation, requires an electronic device to manage the system. With iManager you can install different batteries for: Technology (lead-acid, gel, AGM), power and different age of the battery.

Further specifications of the "Black Box":

• Nominal voltage: 12 V (9-18 V)
• Max. Battery capacity per battery: 600 Ah
• Max. Current consumption: 150 A (for 20 min.) / 100 A (continuous)
• Starter battery charge threshold: < 12.5 V
• Battery cut-off voltage: 10.5 V
• Battery cut-off temperature: 70 °C
• Consumption with battery connected: 8 mA
• Consumption with battery disconnected: 4 mA
• Starter battery fuse: 20 A
• Battery fuse max.: 120 A
• Operating temperature: -15 °C to +65 °C

Other display specifications:

• Nominal voltage: 12 V
• Consumption max. Brightness level: 86 mA
• Display standby consumption: 38 mA
• Consumption when battery is disconnected: 8 mA
• Display type: LED TFT 2.83", 262000 colors, touchscreen
• Operating temperature: -10 °C to +70 °C

Περιεχόμενα:

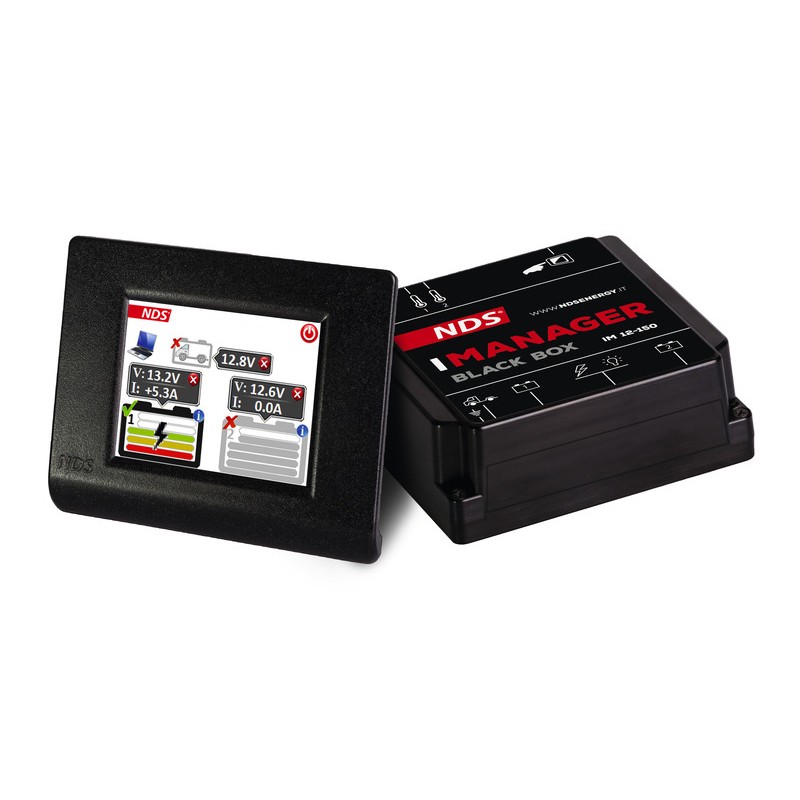

Circuit distributor "BlackBox", iManager display, data cable and power cable for the iManager with cable or power cable for the iManager Wireless, 2 temperature sensors, screws for mounting
